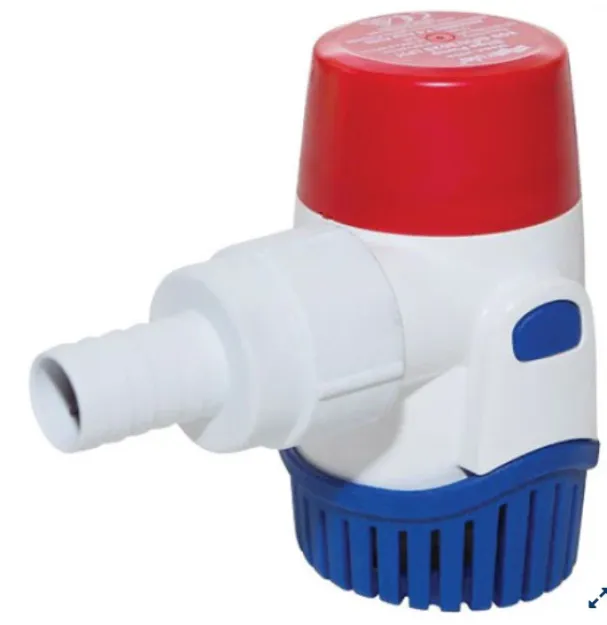

Rule 12V Bilge Pump 800 GPH

Next generation compact submersible 800 GPH electric pump for use as a bilge or bait pump on smaller craft.

Totally submersible pump with water cooled, ignition and TCO protected motor, stainless steel shaft and snap-on strainer base.

This pump is extremely efficient, draws low current and offers high capacity output in a very compact housing, to fit into the smallest available space.

NON-Automatic pump – requires a Rule float switch to operate automatically.

Please note, using the included check valve will reduce the output flow of the pump.

3 year limited warranty.

Features

• Fully submersible pump – 800 US gallons per hour – 50 litres per minute
• Higher flow – optimised impeller to provide greater flow at the same amperage as previous model.
• High efficiency, low amp draw, ignition protected motor includes true Electromagnetic suppression (EMC)
• 16 gauge tin coated copper electrical wiring with silicone infused water blocking feature – to stop water wicking down inside the wiring.
• Built-In thermal cut-out (TCO) in the motor provides additional protection for pump & vessel.
• Backflow prevention – now includes a removable check valve in the discharge nozzle which reduces the amount of water draining back from the pump discharge hose into the bilge. Please note – using the check valve will reduce the rated output flow.
• Threaded discharge port – gives easier installation and maintenance. Discharge hose port is included with each pump.
• Hidden air vents in the pump prevent air locking in challenging plumbing installations and helps with the check valve operation.
• Compact – 112mm Height x 74mm Width x 64mm depth – not including discharge
• 3.4 amp draw @ 12v DC.
• Threaded hose outlet suits 20mm (3/4″) hose. 1 x straight port provided.

Specifications

• Height: 4.4″ (112mm)
• Width: 2.9″ (74mm)
• Depth: 2.5″ (64mm) not incl discharge
• Voltage: 12VDC
• Amp Draw: 3.4 [email protected]
• Foot Print: 2.5″ (64mm) x 2.25″ (57mm) oval
• Fuse Size: 7.5A Fuse Required (Not included)
• Port Size: 1″ (25mm) NPSM / 3/4″ (19mm) Hose barb

Standard Features still included

• 3 Year limited warranty
• Snap-on strainer base
• Compact size & design to fit in the smallest places
• Fully submersible
• Ignition protected motors
• Stainless steel shaft
• Excellent colour retail clamshell packaging
